3DKEY range
Discover 3DKEY technology, a very high security solution applied both to locks and to the C3D European cylinder.
3DKEY®
3DKEY® was born from the continuous Research & Development process, as from the beginning Mottura wanted to create a lock concept that combined the very high security of Champions® cylinders and the traditional reliability of Mottura security locks.

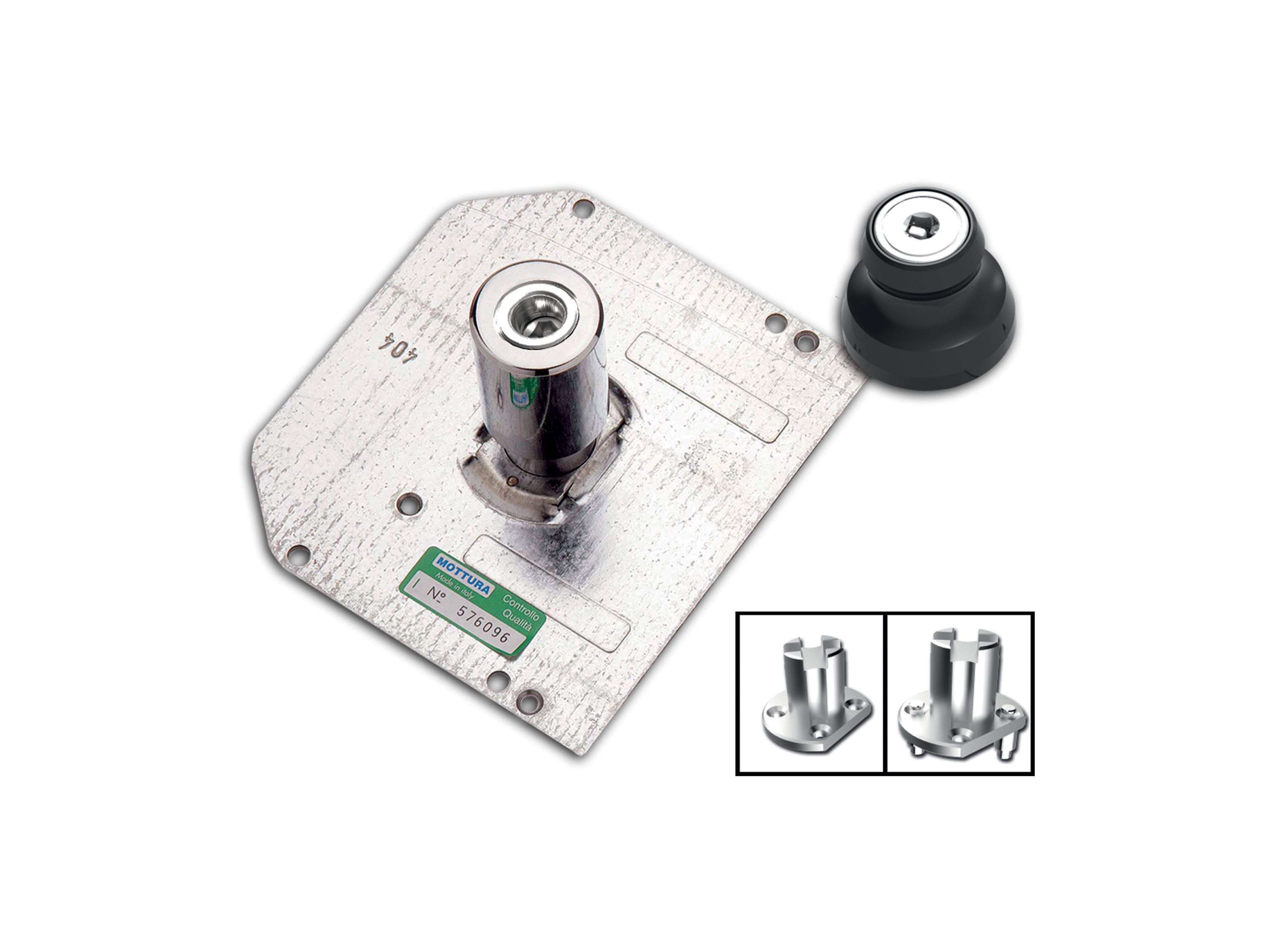

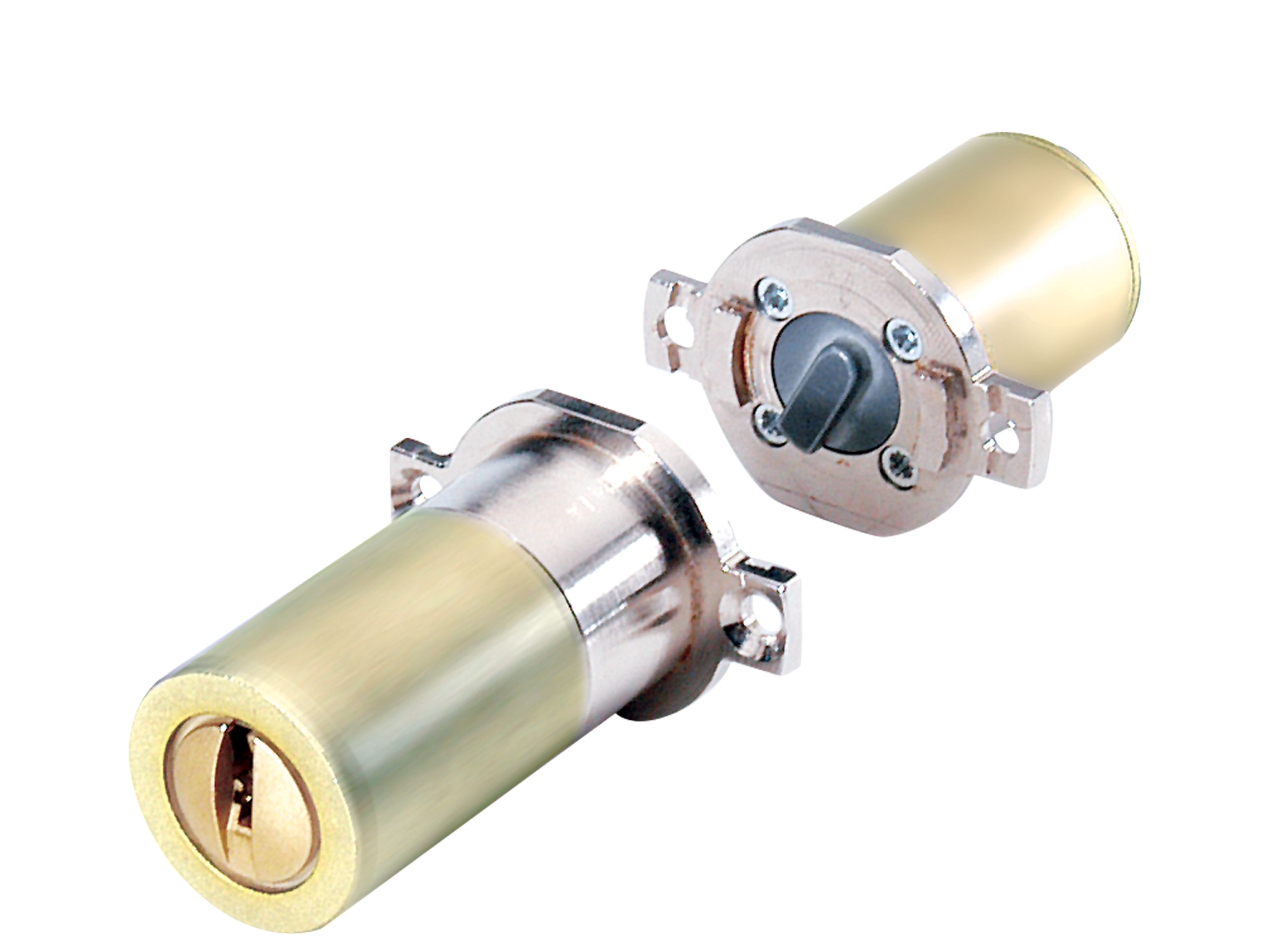

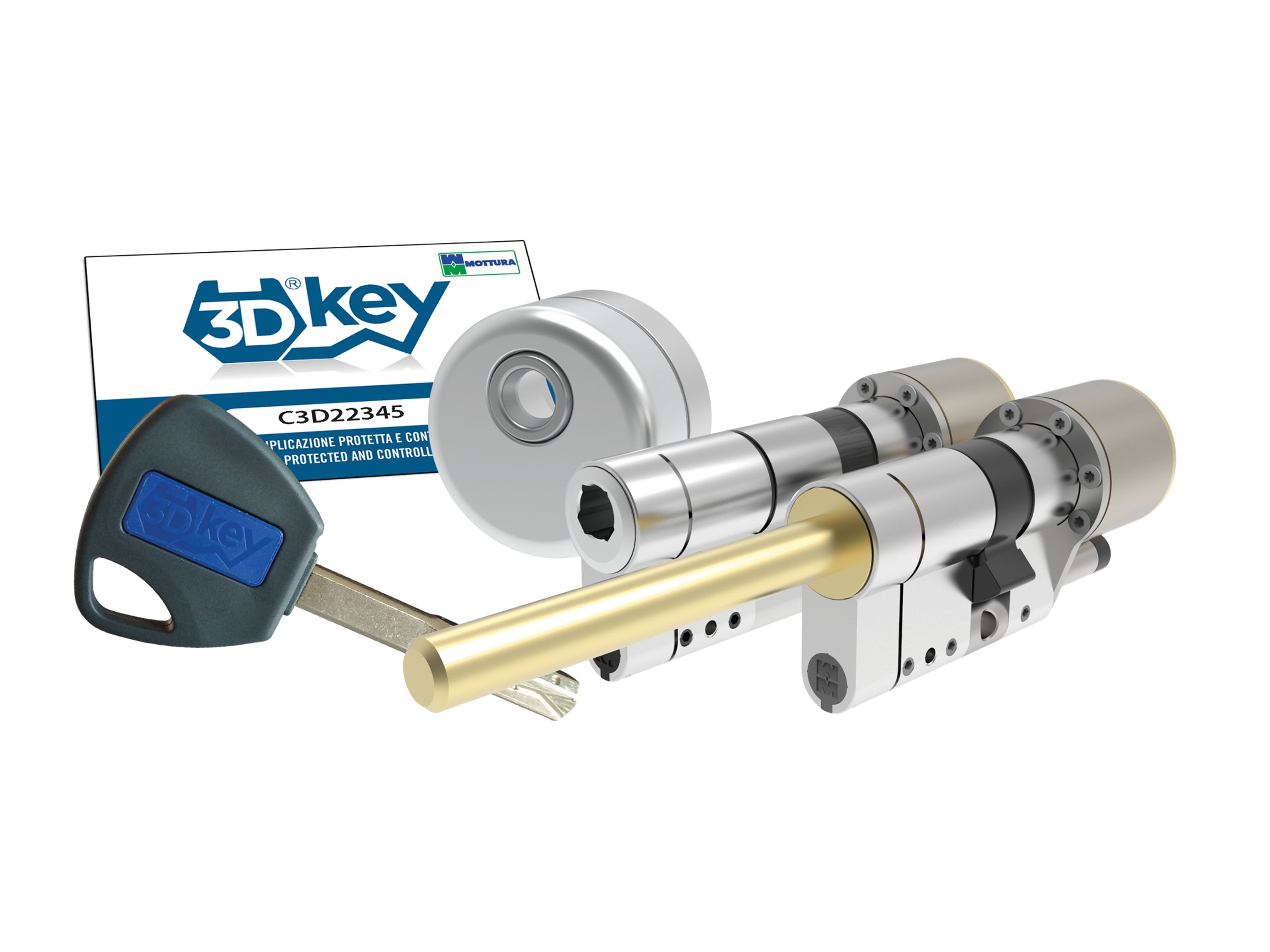

Thus, the first lock with the 3DKEY system was born with an interchangeable core whose hexagonal key technology is also applied to European cylinders (C3D), to other models of locks for armored doors, to cylinders for "Fichet" type locks and to pump cylinder locks spare parts.
3DKEY® Lock
3DKEY® for armored doors
1/4
3DKEY Lock
3DKEY is a very high security lock for armored doors, equipped with an interchangeable gear core operated by an innovative hexagonal key. The lock is compatible in size and fixings with the main locks for armored doors. It is thinner than other locks for armored doors: its thickness of only 25 mm allows for greater applications and the possibility of reinforcing the lock with a manganese plate.
The core
The core
The core is removable and replaceable in the event of loss of the keys to restore the original security.
Thanks to the gears, rotation is smooth and silent.
It is available in the VARIO - CONSTRUCTION version and in the SET/RESET version only for single locks.
The hexagonal key
The hexagonal key
The key has a hexagonal profile made up of 3 coded surfaces and 2 desmodromic tracks. The coding pins, made of hardened steel, reach up to 10 billion possible combinations.
It is available with a 20 - 30 - 40 mm stem or jointed.
The duplication is protected and controlled and carried out only in Mottura.
3DKEY® Accessories

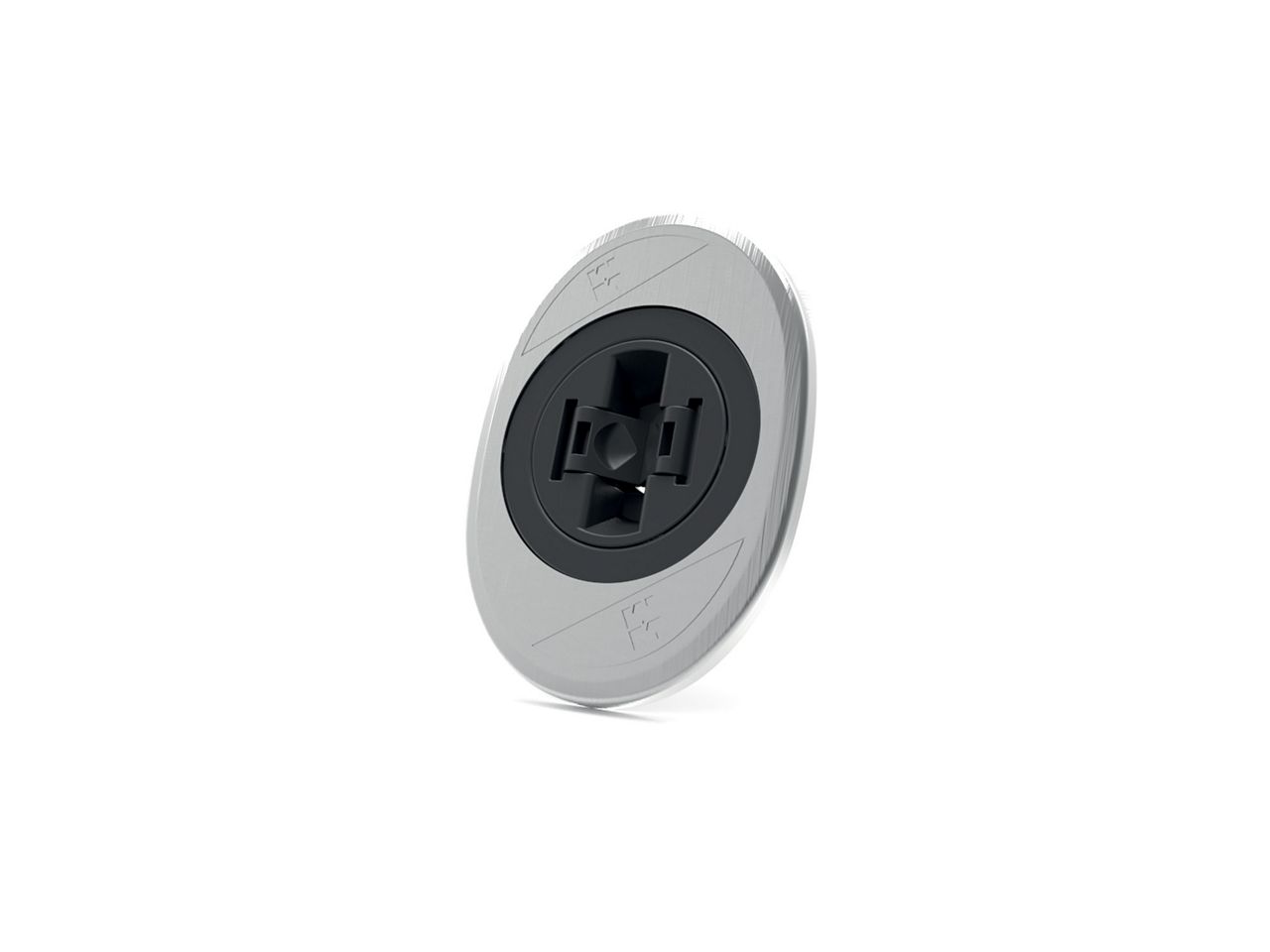

The escutcheons
For a complete finish of the door, a series of escutcheons are provided, available in various types to cover all door thicknesses.

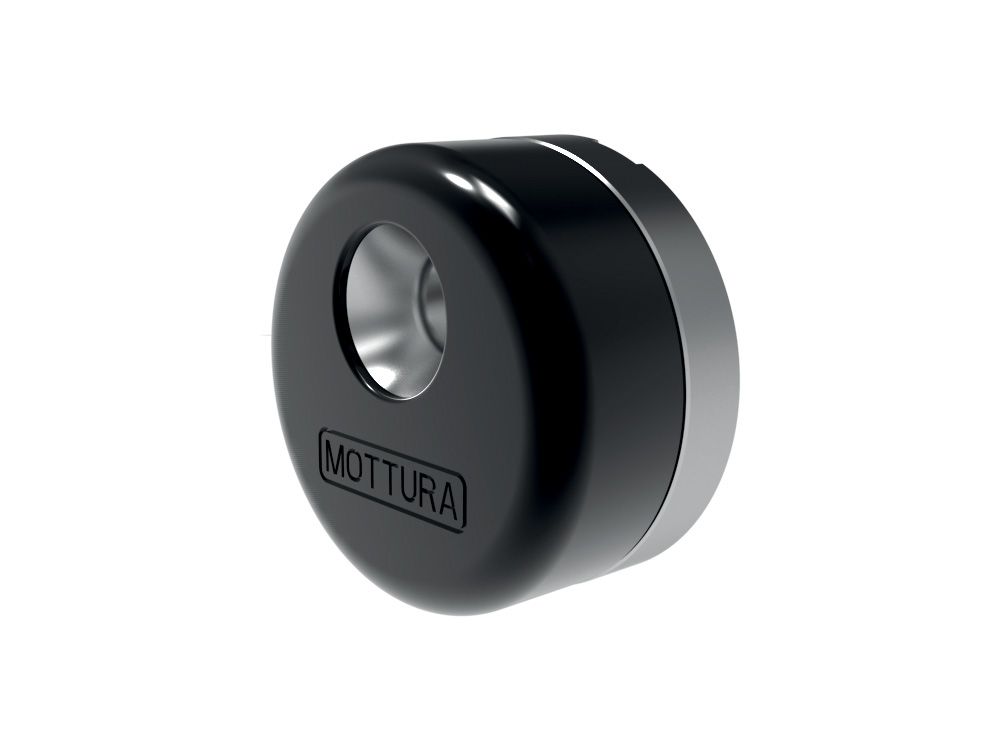

The Defender®
The Defender® are created exclusively for 3DKey locks. Available in different versions, 25 mm height
