Anti-bumping
Resistant to cylinder percussion attacks.

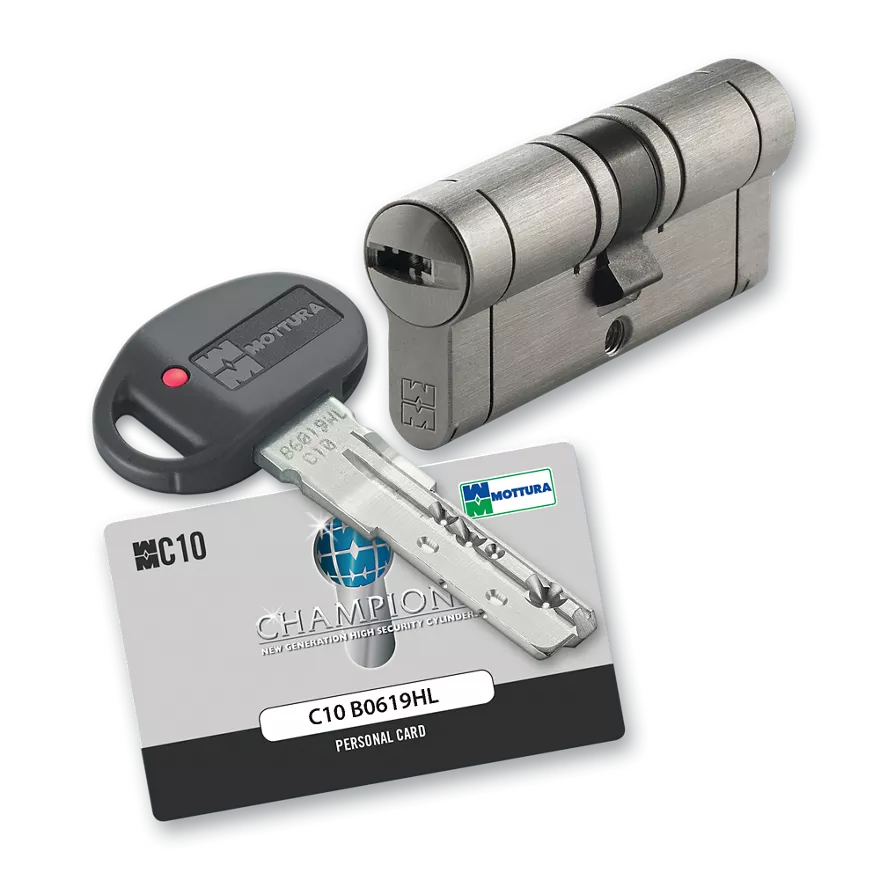

CHAMPIONS® C10 Cylinder
CHAMPIONS® C10 is a cylinder with free duplication.
- Body and rotor are protected against drilling (hardened steel pins, spheres, pins and caps).
- 5 coding pins including pins and counter-pins with anti-pick shaping in hardened steel.
- 2 upper profile control pins.
- 2 side profile control pins.
- All thumb turn cylinders or knob provisioned cylinders are supplied with emergency function.
- The package includes cylinder, ownership card, 3/5 keys, assembly instructions and fixing screw. To guarantee maximum security, the keys and ownership card are sealed at the origin.
- Certified for resistance to “BUMPING” and “PICKING”, they bear the acronym “BKC” on the label.
- Brushed nickel-plated finish. Brushed brass finish on request.
- ICIM certified.
Finishes
Brushed nickel-plated
Brushed brass
Features
Made in Italy
Anti snap shear
30° off-centered cam rest position
NO Bumping/Picking
Construction key
Master key
Key duplication by qualified dealers or Mottura Centers
CHAMPIONS® C10 key duplication is FREE and recommended to be requested to any Mottura dealer.
It is not necessary to show the owner's card, although it is suggested to guarantee the best type of duplication and the real ownership of the cylinder. The numbers printed on the card corresponds to the numbers printed on the keys.
Anti-picking
Resistant to break-in attempts with a pick-lock tool.
Anti-snap
Designed in such a way that, in the event of an attempt to break it with an iron rod, the cylinder breaks at a specific point.
Cylinder types
CHAMPIONS® C10 cylinders are available in 6 different types.
Double cylinder
Frictioned upon request (it opens from the outside even if a key is inserted from the inside).
Double cylinder with adjustable knob provision
Knob fixing ø 8 mm.
Double cylinder with knob provision
Knob fixing ø 8 mm.
Thumb turn cylinder
Knob fixing ø 8 mm
Removable knobHalf cylinder
For locks with 14/20 mm thickness
Half cylinder for armoured doors
For 30mm thicnkness locks
Documentation
Increase the protection of your cylinder
Install a Mottura Defender® to increase the safety of your cylinder. Mottura Defender® is a protection for the European cylinder. Such protections are sophisticated and active mechanisms against break-in attempts, with attention to every detail.
